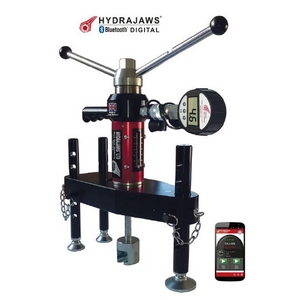

MEDIUM DUTY KIT (25kN & 50kN)

Professional Medium Duty Fixing Testers enable engineers to confirm the holding power of anchors in most construction materials, either for the purpose of establishing safe working loads or to validate the correct installation of existing fixings.

The tensile load of up to 25kN or 50kN is applied to the fixing mechanically and hydraulics are used to register the load through an accurate analogue gauge, making the tester very reliable.

Hydrajaws revolutionary digital technology captures test results using a mobile phone or tablet device, allowing for instant visual graphs on-site for fixings including anchors & eyebolts. Results are currently recorded manually using an analogue gauge; however with our unique digital system, using Bluetooth, it produces real time visual graphs for each test.

Test evidence can be provided electronically from site to clients in a completed report, saving time on unnecessary paperwork. (Requires Wi-Fi or Mobile Network Signal) Compatible with Android or Apple based devices such as smartphone/Tablet.

CHARACTERISTICS:

• Two Detachable gauges of choice with quick release hydraulic couplers
• 150mm load spreading bridge with 100mm M10 threaded legs and swivel feet
• Bolt tester adaptor with M12 locking adaptor
• Six threaded button adaptors (M4, M5, M6, M8, M10, M12)
• Six slotted button adaptors (4.5, 5.5, 6.5, 8.5, 10.5, 12.5)
• Calibration certificate (valid for 12 months)
• Oil Replenisher bottle with hydraulic coupler and piston key
• Robust carry case
